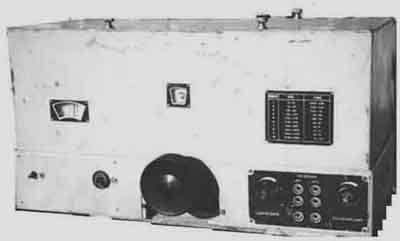

Philips (Berlin) H2L/7
Click here to find the circuit diagram (pg
904) for Philips (Berlin) H2L/7,
since it must be gif file it is too large to show on this page,
only for printer!

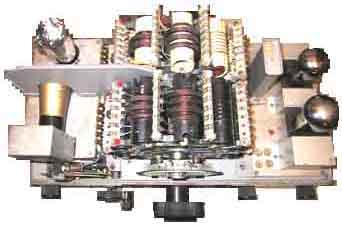

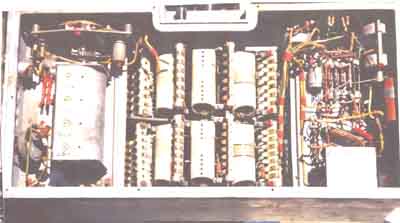

page-g96 Component list
 |
 |
Philips H2L/7
L1 HF-Röhre B442 (alternativ H410D)
L2 Audion-Röhre B424 (RE084k)
L3 NF-Röhre B424 (RE084k)
L4 Endröhre B443
Frequency coverage: 15-46, 46-135, 135-400, 400-1050,
1050-2750kHz
2.75-7.5, 7.5-9.6, 9.6-12.5, 12.5-15.7, 15.7-21.0MHz
Further info: http://home.t-online.de/home/marisys/h2l7.htm
NSF-factory showing the H2L/7 (among other things)
http://www.xs4all.nl/~levend/tvmuseum/tvmuseumnsf/nsfdingen01.htm
PHI 1 UK 41 = DR25b
