22.1)
Audio frequency spectrum analyzer anno
1939.

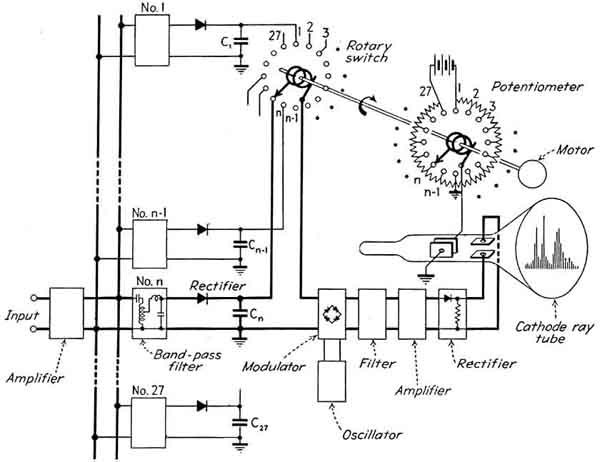

In Electronics November 1939 pg. 76-77
is an article with "Diagrammic representation of the
functioning of the audio frequency
spectrometer. Only one bandpass-filter is shown although
twenty-seven are employed in practice, The spectrum appears on
the screen
of a cathode ray tube.
22.2)
Radiometer Multimeter MM1f modification for better reading for
0.05-1µH inductance
22.3)

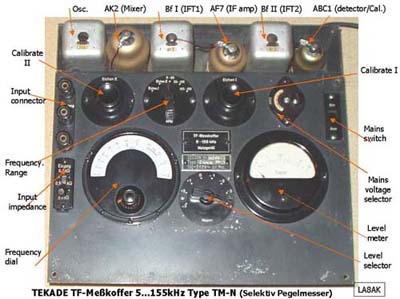

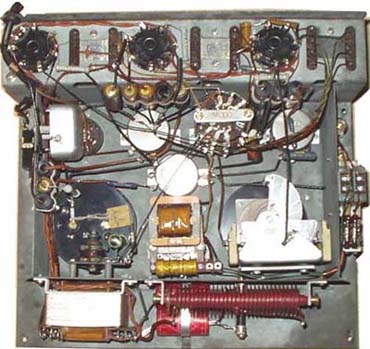

TEKADE Träger-Frequenz
Meßkoffer 5-155kHz (later German term is Selektiver Pegelmesser),
Suppose this is the first selective voltmeter ever made. They
were used to measure levels on multi-channel
carrier frequency systems. One such instrument were placed in
Kristiansand, another in Arendal since it was
subsea coaxial cables to Denmark, believe it was a 15-channel
system (MG15) during the war and many years after.
See Die deutschen Funknachrichtenanlagen
Band2 "Der Zweite Weltkrieg" pg139
See application on pg-33b, pg-k61 and pg-k62

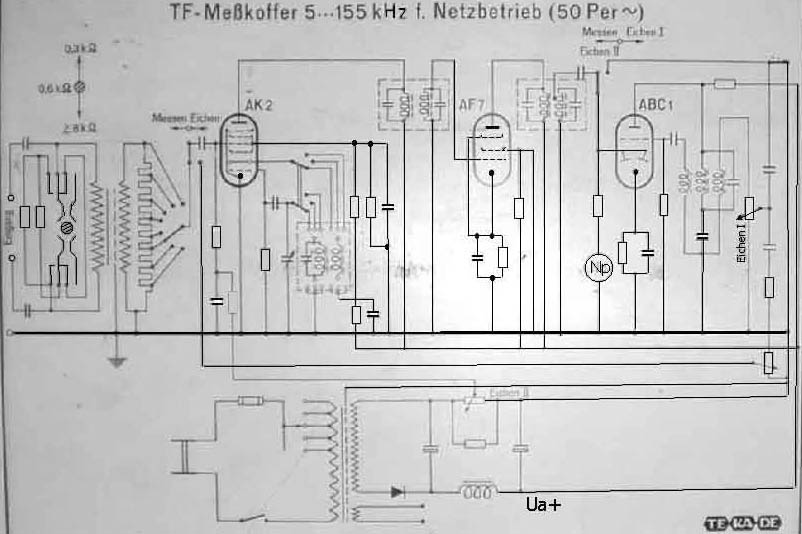

TEKADE Träger-Frequenz
Meßkoffer (Circuit diagram)
 |
 |
22.4)

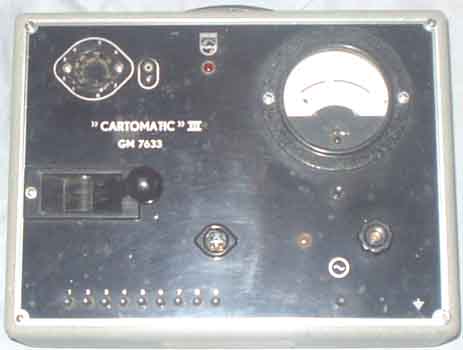

Philips GM7633 Cartomatic III
Old tube testers and other instruments,
see http://www.one-electron.com/FC_TestEquipment.html
Nolan Lee's site for tube testers
 |
 |

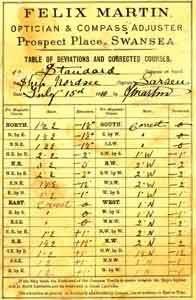

Felix Martin, Optician &
Compass adjuster, Prospect Place, Swansea
Repetition course in navigation 1894
2004.09.24
