Lorenz Lo6K39, Lo6L39
Other pages:
e11.
Receiver's Intermediate Frequency List
e12.
Data for German communication receivers
e86.
Thermionic Valves (tubes)
Technical articles under preparation
(received from PA0SE Dick Rollema):
10a Introduction to German World War II Radio Equipment
12a. German World War II Radio Equipment - Köln
E52 receiver - part 1 (PA0SE Dick Rolema)
12b. German World War II Radio Equipment - Köln
E52 receiver - part 2 (PA0SE Dick Rolema)
12c. Lorenz Shortwave
Receiver Lo6K39a (Lo6L39), The ultimate TRF set
[PA0SE]
12d. Telefunken World War II Superheterodyne Receiver Kw.E.a
(Lw.E.a) [PA0SE]
12e. Telefunken World War II Universal TRF receiver Torn.E.b
[PA0SE]
Lo6L39 (Lorenz)

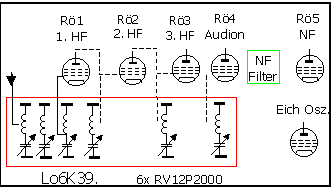

Lo6K39 Block diagram
Lo6K39 (Lorenz) (the receiver looks exactly like
Lo6L39) Reg. RX type: 3V1
Ranges: 1.45-2.2, 2.07-3.14, 2.96-4.46, 4.2-6.35, 5.97-9,
8.48-12.77, 12.030-18.13, 17.07-25.75MHz
Circuit: 6x RV12P2000, STV150/20, TE30, 12V 5W dial lamp.
1.RF, 2.RF, 3.RF, Audion-detector, Audio amplfier, Calibrator.
Measures: 438H x 500W x 320D (mm)
Mains operated.

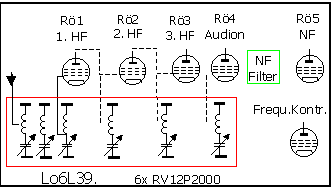

Lo6L39 Block diagram (the
receiver looks exactly like Lo6K39) Reg. RX type: 3V1
Ranges 74-111, 107-161, 156-235, 227-342, 330-497,
479-725, 697-1055, 1015-1530kHz
Circuit: 6x RV12P2000, STV150/20, TE30, 12V 5W dial lamp
(Sofittenlampe)
Power: 220V A.C 0.13A, 110V AC 0.26A
Measures: 438Height x 500Width x 320mm deep, weight 65kg
Mains operated.
Lo6K39/Lo6L39
circuit diagram
Some spare coils for Lo6K39
 |
 |

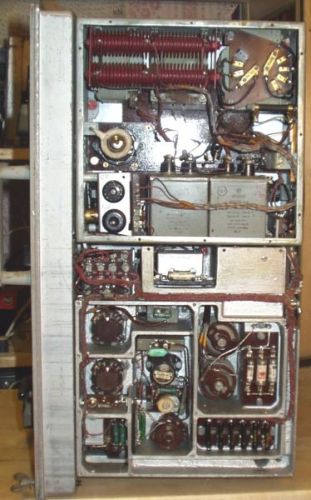

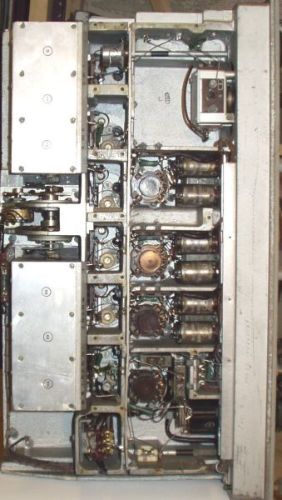

Chassis seen from
left and right side
 |
 |

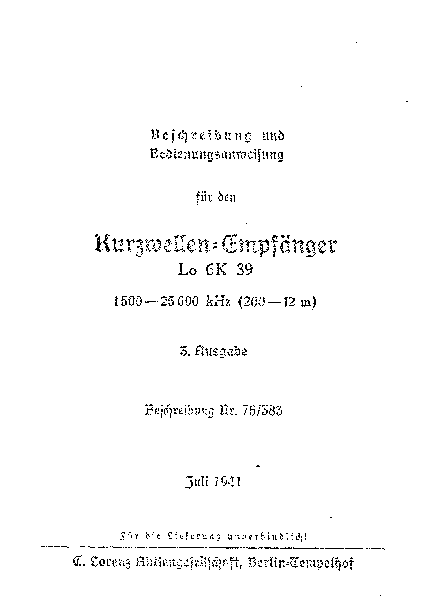

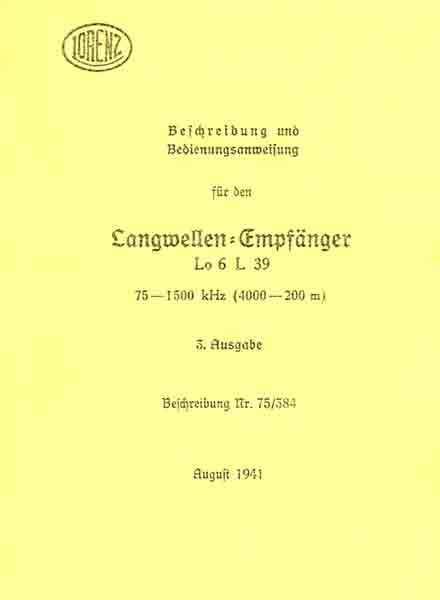

The handbook for Lo6L39 also applies for Lo6K39, believe I got it
from DL6VW Werner, but it is
small - only A5 size, and the text is written in gothic letters
last update 2004.06.07
