Funkhorch Empfänger-c (Monitoring receiver)
Circuit: 10x RV2P800 as
RF, RF, MIX, OSC, IF, IF, IF, Audion detector, Audio output, BFO/CAL. 2x Sirutor 5b as AGC rectifier.
IF= 1875kHz, single xtal-filter. Xtal controlled BFO: 1874.1/1875.9kHz.

Frequency ranges: 1. (White) 3.53-5.94MHz, 2. (Red) 5.77-9.68, 3. (Yel) 9.40-15.80, 4. (Blu) 15.35-25.80MHz.
Power requirement: 2V 1.9A, 90V 20mA. Automatic bias from anode current.
Inverter for 12V operation EW.h.
Measures (mm): 430 H x 340 W x 240 D, Weight: 27kg.

ESB Zusatz.
Zur Verminderung der Anfälligkeit von KW-Telefonieverbindungen nach Übersee hatte die Reichspost bereits 1931 auf Vorschlag der Fa. Telefunken (Dr. W. Runge) einen ESB-Verkehr Berlin-New York eingerichtet. ....und der Zusatz EB1/3a "Käthe" von Siemens zu Fu.H.E.c (1944/45) wurden übrigens auch gelegentlich für Abhörzwecke eingesetzt. Fritz Trenkle: Die dt. Funkpeil- und -Horch-Verfahren bis 1945, S.35.

EB1/3a, see pg 22i

Funkhorch Empfänger u.
All front marking are removed sometime in the 50's, but Hans Jürgen Keller / DH1AB has sent me most of them, and he
mentions that it is possible to get more such things from Günther Hütter <g.huetter@t-online.de>.

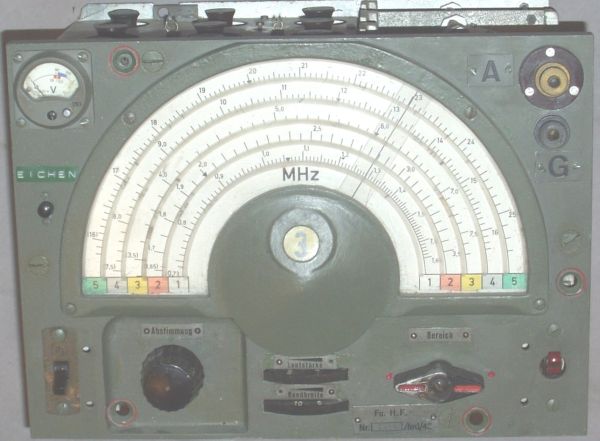

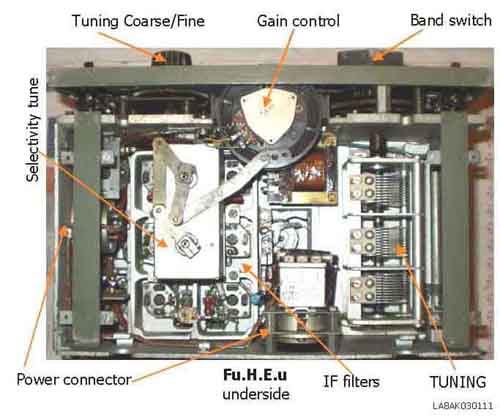

Fu.H.E.u seen from different angles

Fu.H.E.u Funkhorchempfänger 'u' (Monitoring receiver)
Frequency ranges: 0.73-1.65, 1.65-3.5, 3.5-7.5, 7.5-16, 16-25MHz
IF= 470kHz. Calibrator xtal: 2000kHz

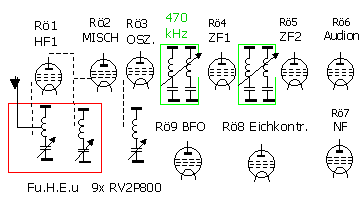

Circuit: 9x RV2P800 as RF, MIX, Local osc, IF1, IF2, Audion detector, Audio, Calibrator, BFO.
Power: 2V 1.8A, 90V 20mA. Automatic bias from anode current.
Measures: 453H x 365W x 250D. Weight 22kg(?)

Note: It is another version, Fu.H.E.u1 with somewhat modified antenna connection

More notes related to this sort of receivers:
Fritz Trenkle, Die deutschen Funkpeil- und -Horch-Verfahren bis 1945, Seite 24..:
1.3 Empfangsgeräte für die Nachrichten-Aufklärung

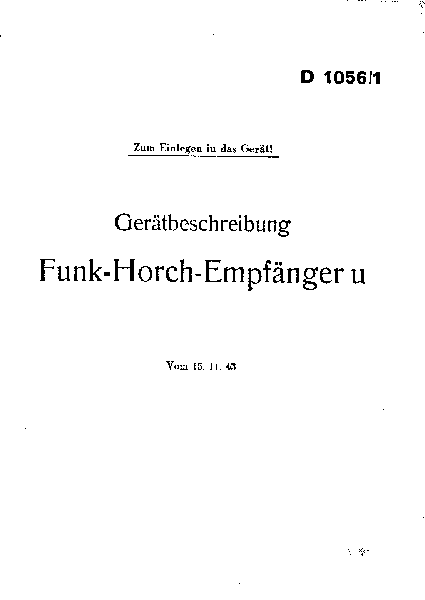

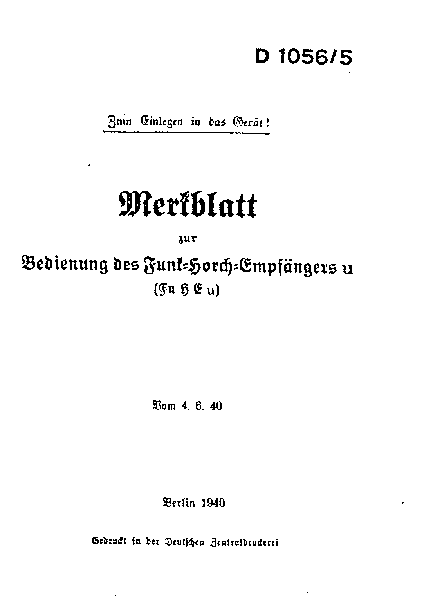

D1056/1 is available from DL6VW, D1056/5 is in gothic letters - without circuit diagram

LA6NCA Helge operating the Fu.H.E.u1 with goniometer for direction finding 2004.10.29
