f21. Surplus components
Bauteile aus dem Schrottmarkt
see page
f22 for more components
 |
 |

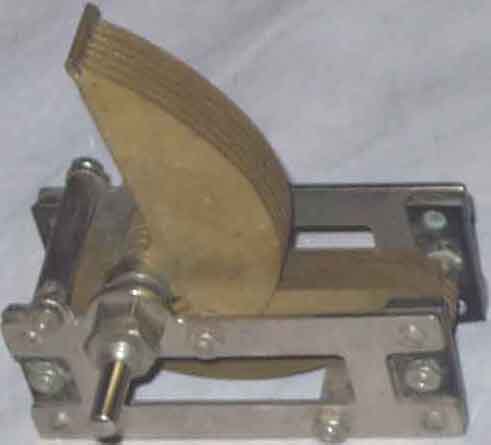

Surplus capacitor with unusual sharp curve.
Standard ready wound coil for use in constructions before the war,
see circuit diagram below
Indicator used for FuG6(?)

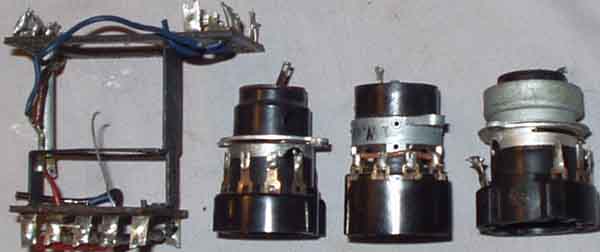

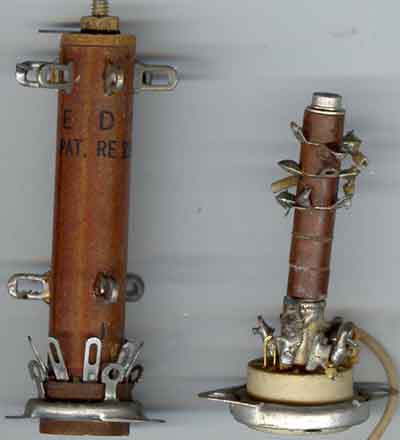

Ceramic coils used in German transmitters
 |
 |
 |

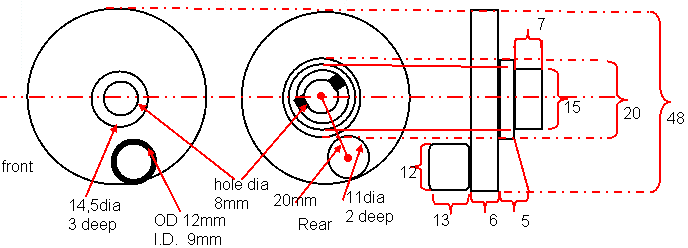

Constructing the tuning knob for KwEa/LwEa
Ytre diameter er 48mm, tykkelse 6mm, bakre ringer er hhv 20 og
15mm dia,
lengder er 5 og 8mm. skrue for feste av bakelittring (ca 12mm
dia) er 20mm
fra senterakse. Bakelittringen stikker ut 13mm, festet med en M4
(?) skrue
med stort flatt hode, det er frest ut for mutteren (2mm dypt 11mm
dia)
Hull foran for festeskrue er ca 15,5mm dia og 3mm dypt
 |
 |
 |
Bandswitch knob for KwEa/LwEa
363kc IF xtals for MwEc

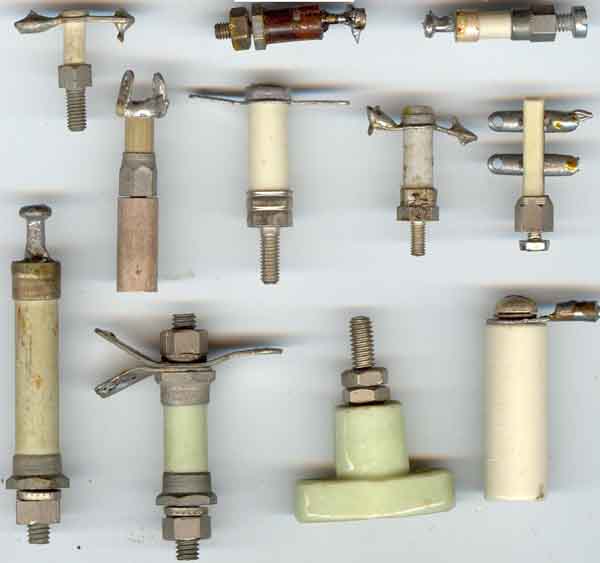

A variety of standoff insulators

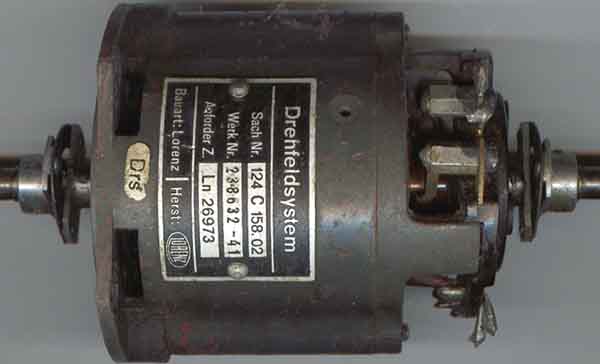

Drehfeldsystem. Sach Nr.: 124C158.02, Anforder Z: Ln 26973

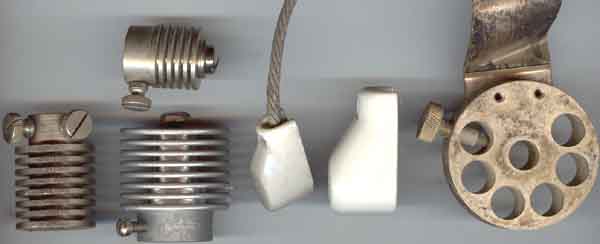

Variation over the theme of RF-chokes
Conversion to use RV2,4P700 instead of RV2P800 in a Torn.E.b

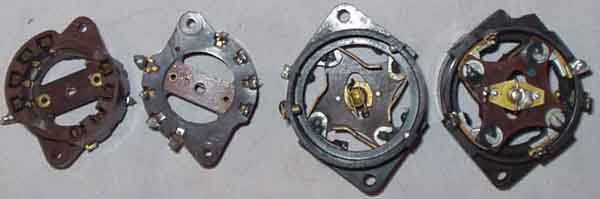

Valve holders for RL4,8P15/RL12P10 and RL12P35, see LA9DL's page for sockets
 |
 |
Some US- and EU type holders.

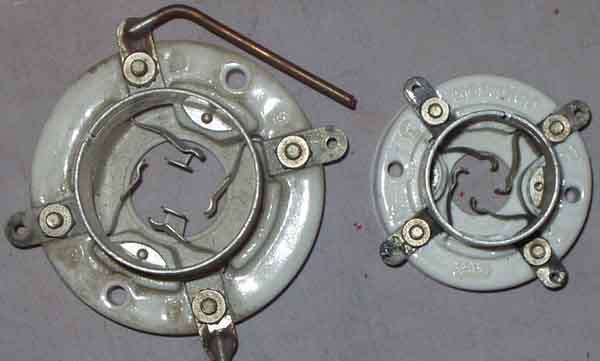

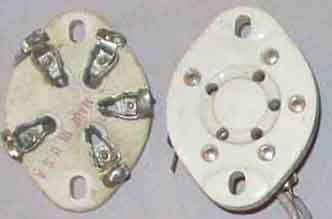

Sockets for transmitting tubes, the smallest is for 100TH

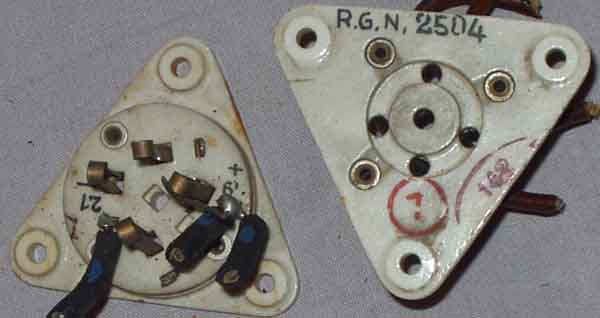

German ceramic holders (for rectifier valve RGN2504)

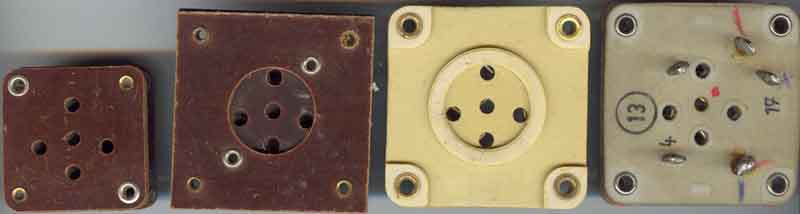

Old German EU-holders
Some Luftwaffe valve holders

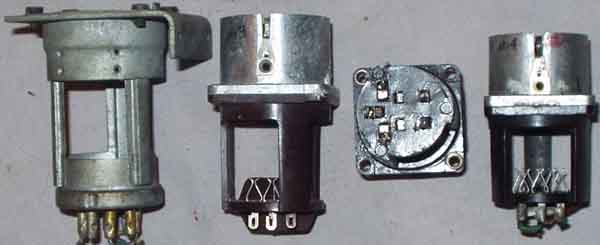

Valve holders for RV2P800 and RV12P4000 (RL2P3)
Valve holder for "Stab.Rö"
Different valve holders for RV12P2000 (RV2,4P700) and mounting
bracket

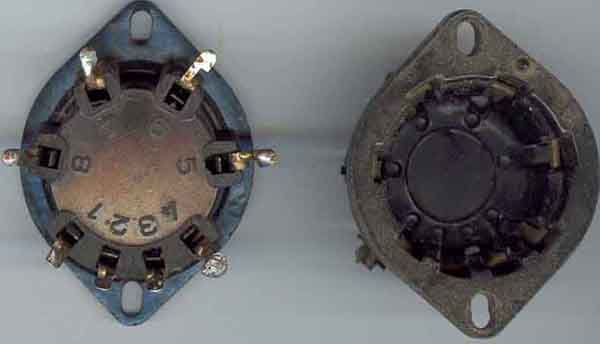

Holders for German steel-valves (EBC11, EBF11, ECH11, EF11,
EL11....)

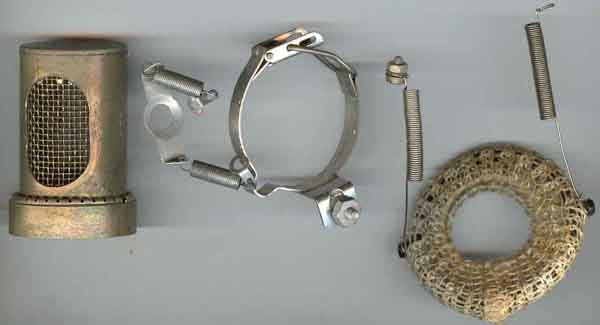

Mounting clamps for noval- and octal type valves

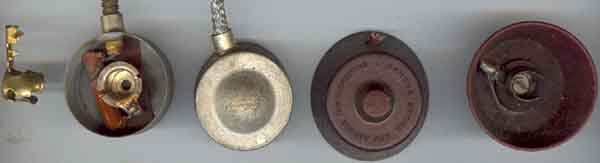

Anode connectors for transmitting valves
Miniature- and noval bases with mounting towers
Top-hats

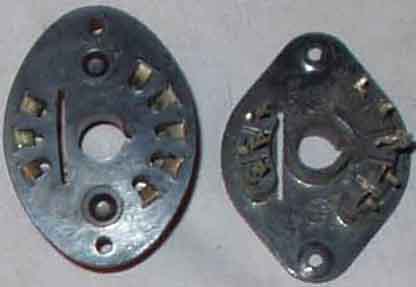

Side contact holders (AK2, AF3, AF7..., AZ1, EBF2, EF6, EF8, EF9,
EK2, EL2 ..., KBC1, KF3, KK2...)
Battery connector +90V HT and +1,5V LT

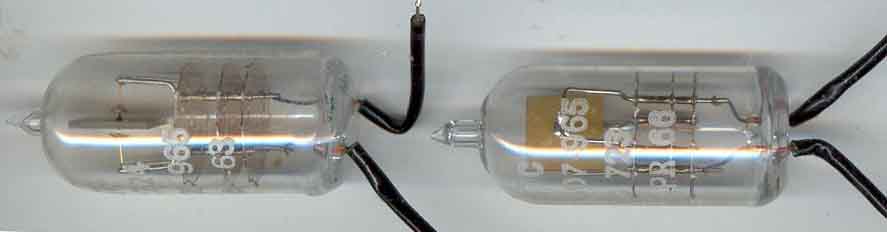

307kc filter xtals

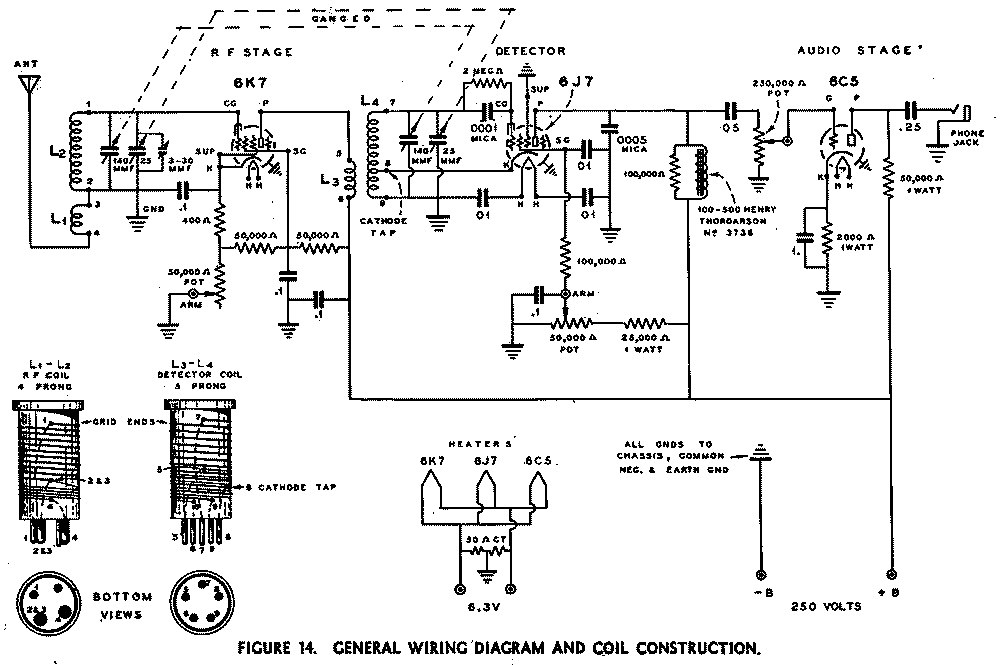

Continuous-coverage TRF receiver, General wiring diagram and coil
construction
copied from The
"Radio" Handbook (Radio Ltd 1938) pp.177-179
