30e. S10L/S10K transmitters
(Flugzeugfunkanlage FuG 10)

See the matching receivers E10L and E10K on page 23a
See the alternative longwave receiver EZ6 on page 23e
German World War II Radio Equipment (FuG10) by Dick Rollema PA0SE on pg 12a (planned)

S10L

S10L transmitter is easy to maintain, loosen the 13 red screws and it is easily divided into two sub-units with no soldered connections,
you only must unscrew the anode clips on RL12P35. Suppose the rear part is very much the same for S10K as for S10L. Have not checked the
component values, but it is few capacitors.
Every 60 years (or less) all open surfaces must be covered with vaseline-oil to avoid corrsion. particularly to cover where light metal and iron plate
is already bad, remember the screw heads and open threads.

S10K

S10L

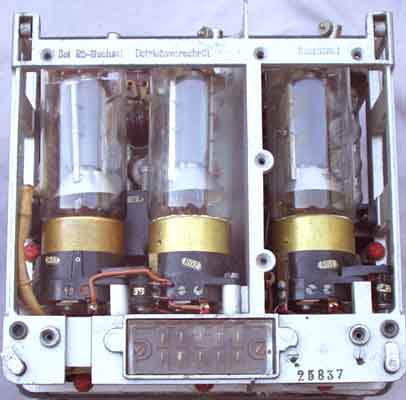

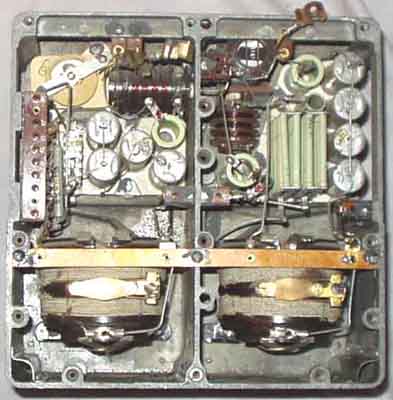

S10K and S10L seen from above front section

S10K

S10L

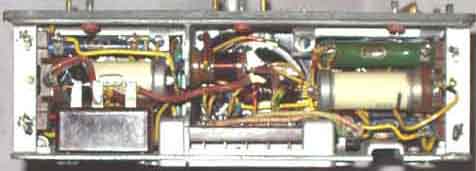

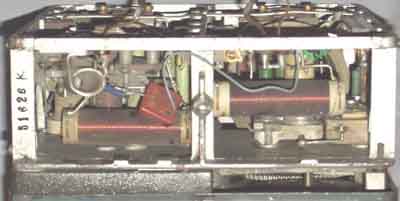

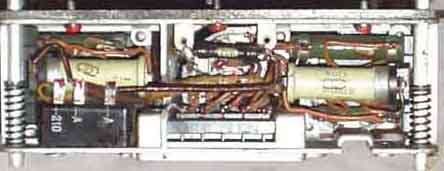

S10K and S10L seen from under rear section

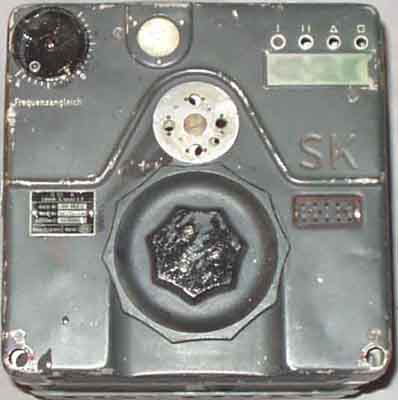

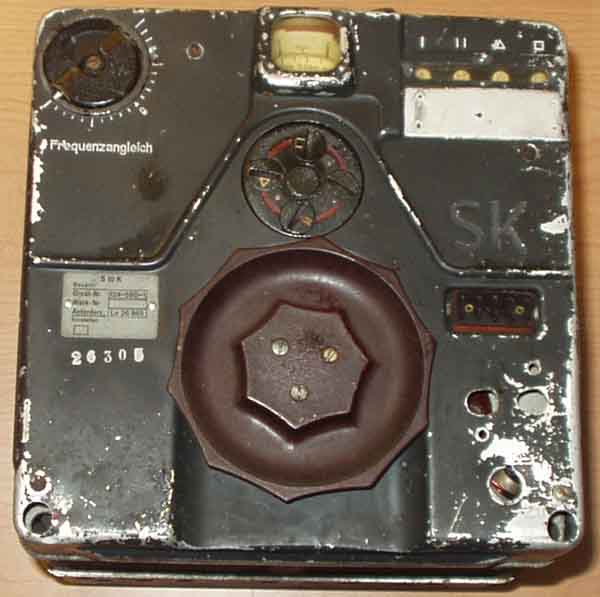

S10K front (with some missed parts)

S10K transmitter type plate

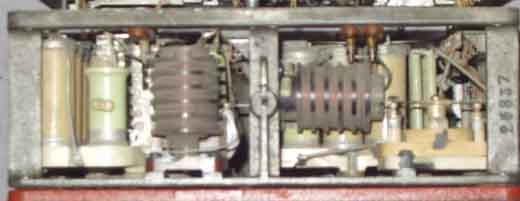

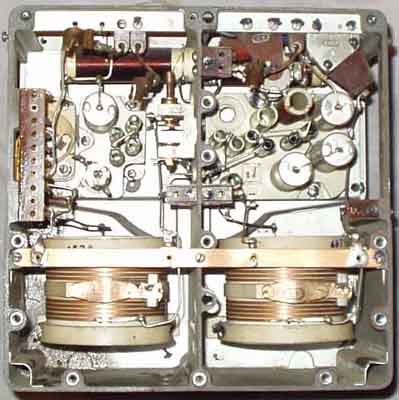

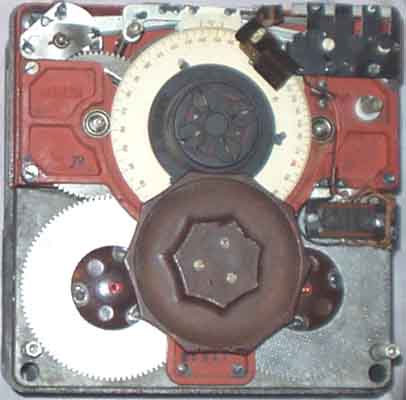

S10K, inside of front unit, you'll distinctly notice the variometers for shortwave
compared with those above for LW.

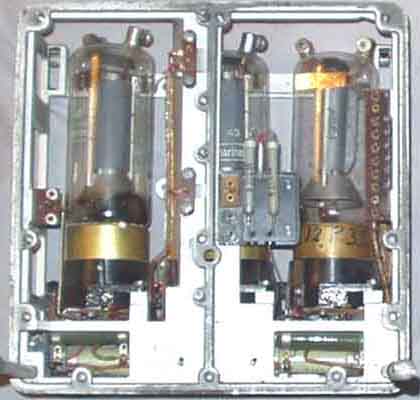

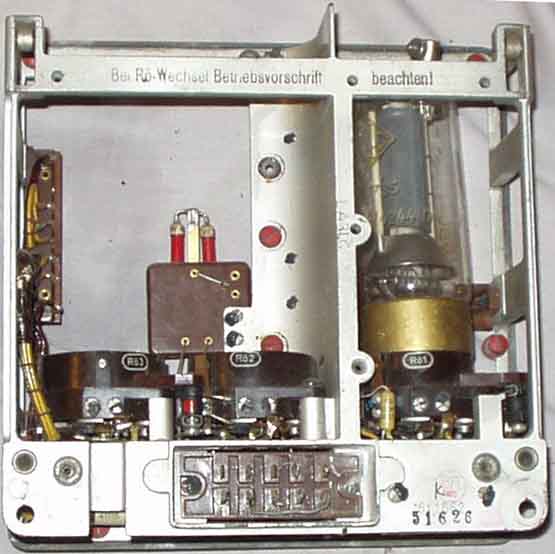

S10K rear unit seen from behind

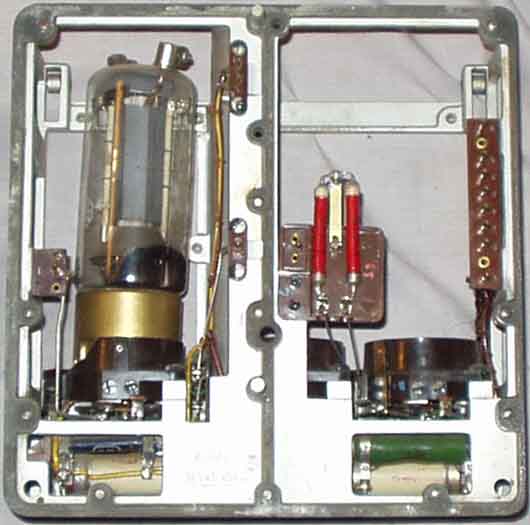

S10K rear unit seen from 'front'

SK/SL-transmitter mounting bracket R2S.10KL, suppose it is made of 1mm steel plate.

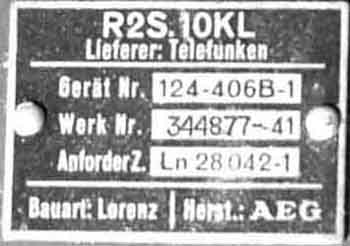

Bracket type plate

.

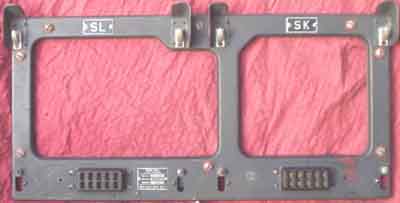

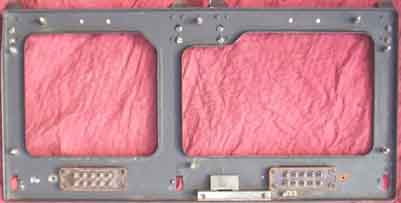

Mounting bracket R2S.10KL seen from front and rear side

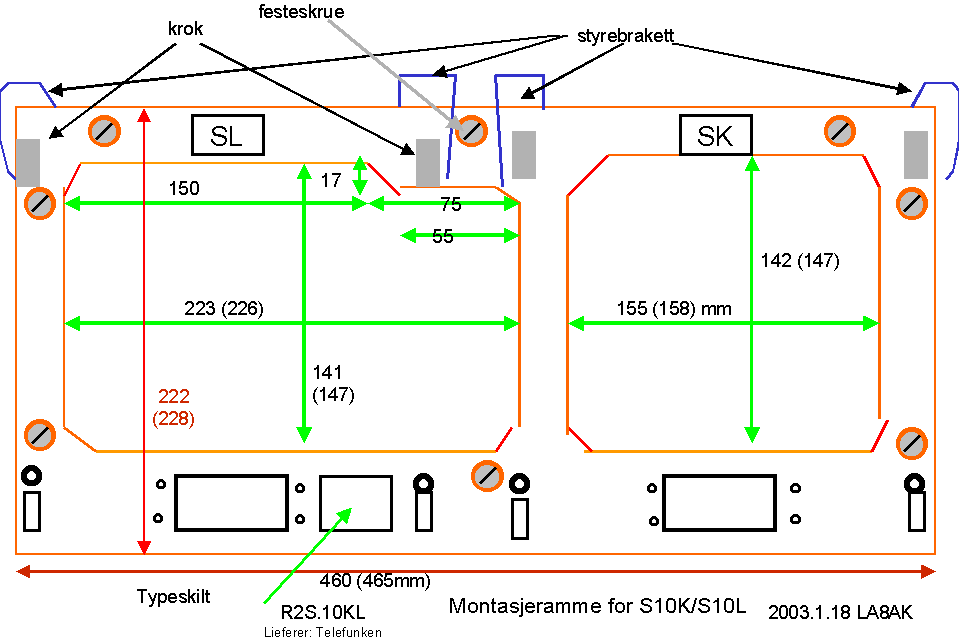

Measures for mounting frame

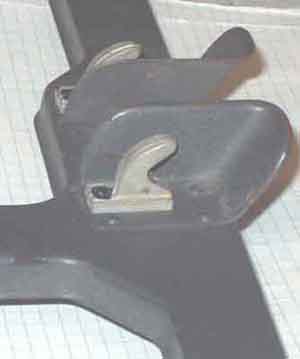

Hook detail for the frame

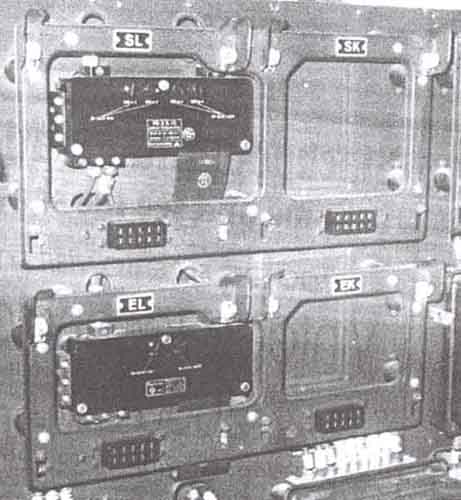

A somewhat better picture for the FuG X line-up is seen a at the Wehrtechnikmuseum

Mounting frames for the receivers and transmitters. It is somewhat bad quality on the copy
I've got, see the original article by PA0SE Dick Rollema in Radio Bygones No. 65, June/July 2000,
the equipment shown is a part of the collection owned by Arthur Bauer PA0AOB.

Aktuelle artikler å sjekke opp i Amatör Radio og OZ:

SK-10 Variometret............................................ OZ8T AR 50-06-132
RL12P35 og RL12P50 ..................................OZ7AQ OZ 70-07-292
RL12P50 Data............................................................. AR 73-01-004
RV12P2000 og RV12P2001 brukes i nyeste mottakere AR 51-09-246

*** S10K egner seg ypperlig som VFO for Lo40K39 - med redusert anodespenning, det vil gi bedre ***
*** resultat på CW (ren tone) og mulighet for bedre modulasjon på AM (LA4OE, Richard).............. ***

2004.04.04
