25d. Tornisterfunkgeräte.d2 - VHF AM transceiver


Links to other pages:
e12 Data for German communication receivers
25a Notes about restoring Torn.Fu.b1/Torn.Fu.c/Torn.Fu.f (in Norwegian)
25b Modification of Torn.Fu.b1 (Net RX to TX frequency in the field) (Norwegian text)
25f . Vb.K (Fbg.bf) Fernbesprechzusatz (remote control unit for Tornisterfunkgeräte)
25h Lo1UK35
n72 Feldfu. "Bertha"





Space for accessories below

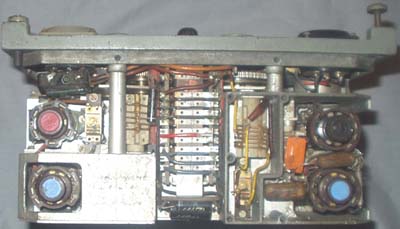

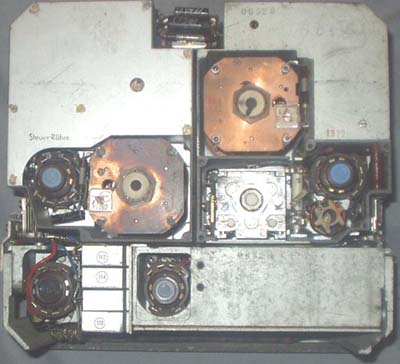

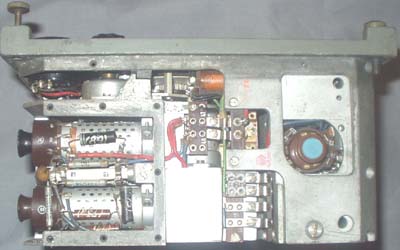

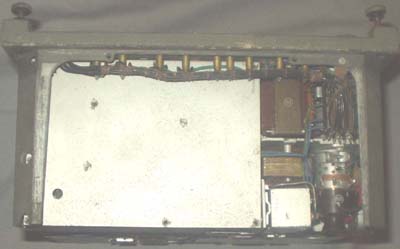

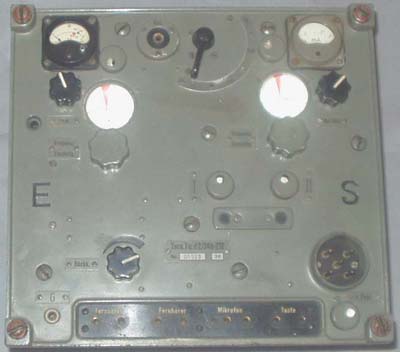

The transceiver without cabinet

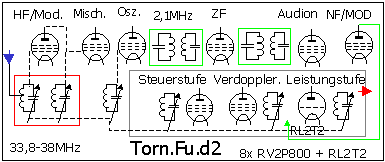

Torn.Fu.d2 AM transceiver 33.8-38MHz, IF=2.1MHz,
TX: 2x RV2P800 + RL2T2
RX: 6x RV2P800

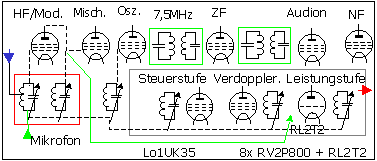

Torn Fu.d2 vs Lo1UK35
Lo1UK35 uses RX-RF-valve as mike-amplifier, while Torn.Fu.d2 uses the RX audio amplifier.

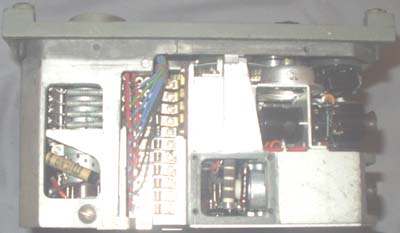

Rear view

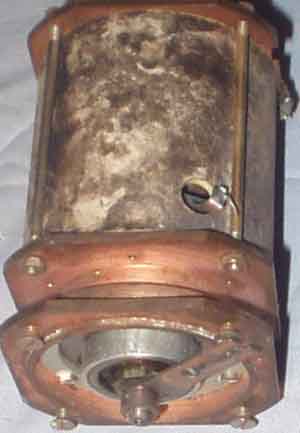

Cavity

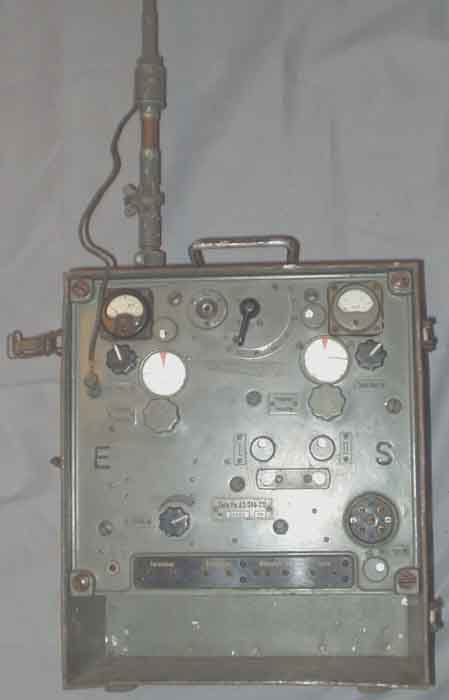

Tornisterfunkgeräte.d2 VHF AM transceiver
This is the largest rig carried by one soldier in Wehrmacht

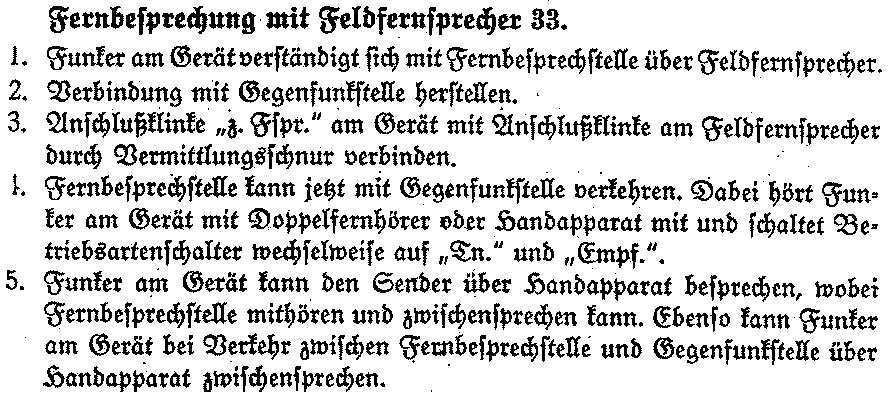

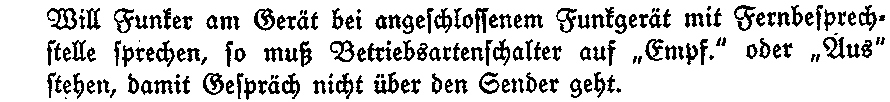

Fernbesprechung mit der Feldfernsprecher 33




Torn.Fu.d2/24b-212. Model sign-plate



RV2P800

RL2T2

Data for RL2T2, see page e81

You may also find the manual for the Tornister-Funkgerät d2 at BAMA, see
http://bama.sbc.edu/recent.htm
The document is in deja-vu format.

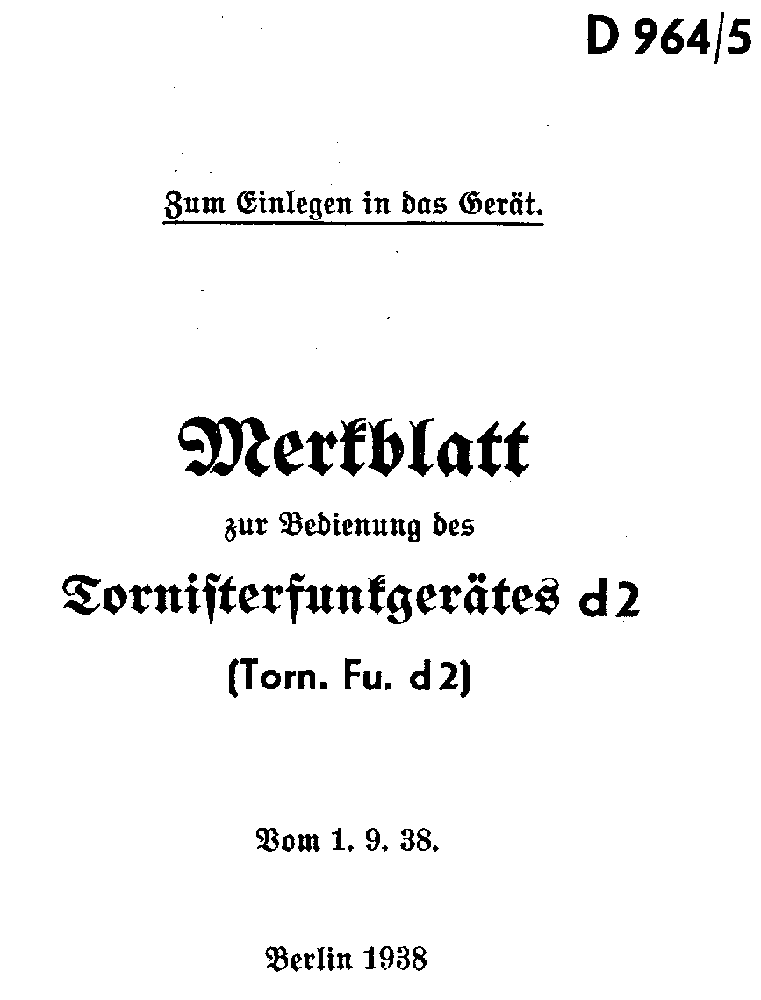

-.d2 Handbook




see
page 28c for power supply considerations using different rigs with the same power supply cables
