25f) Vb.K (Fbg.bf) Fernbesprechzusatz (remote control for Tornisterfunkgeräte)


Links to other pages:
e12 Data for German communication receivers
25a Notes about restoring Torn.Fu.b1/Torn.Fu.c/Torn.Fu.f (in Norwegian)
25b Modification of Torn.Fu.b1 (Net RX to TX frequency in the field) (Norwegian text)
25h Lo1UK35
31a 15W.S.E.a/b transceiver - Norwegian text article (1952)

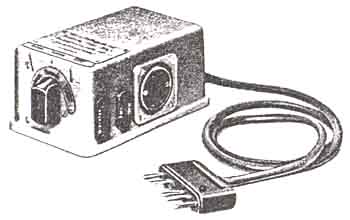

Tornisterfunkgeräte b1, c, f: Der Fernbesprechzusatz Fbz. (b f):

Kabeltrommel
Vb.K (Fbg.bf)

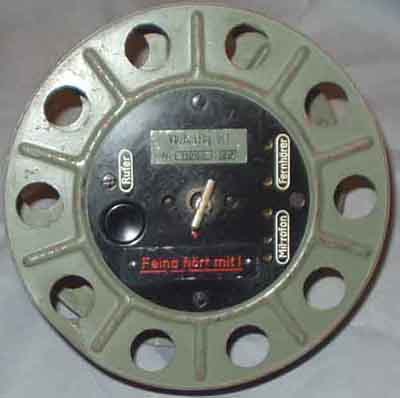

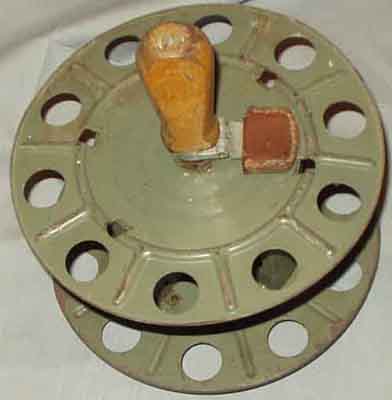

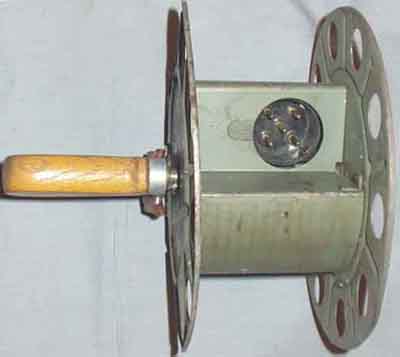

Vb.K (Fbg.bf) - Kabeltrommel, part of remote control equipment for Torn.Fu.b1, Torn.Fu.c,
Torn.Fu.f. Got it from LA8J, Karl for some antenna wire in 1969 and it laid outdoors in rain and snow for
over a year in 1970 because I didn't see any value in it, but still I cannot see any damage to it.


Got some more documents from DL1OY, Helmut Liebig....

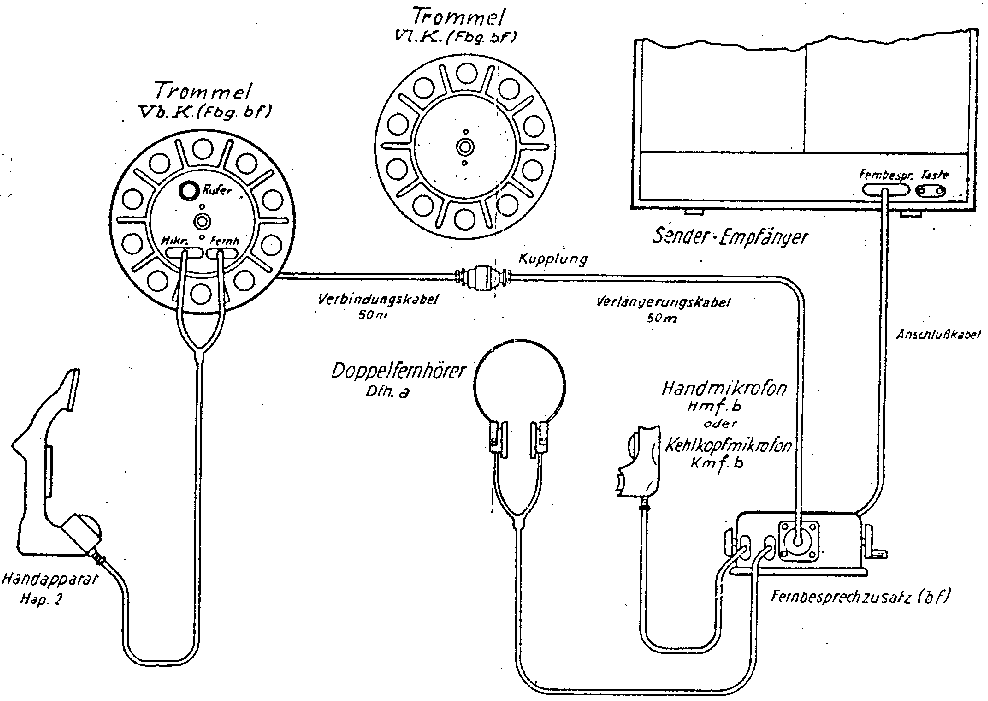

Anlage 2. Anschlußsbild des Fernbesprechzusatzes




Anlage 4. Montageschaltbild des Fernbesprechzusatzes (Torn Fu b1)
(4dw.jpg)

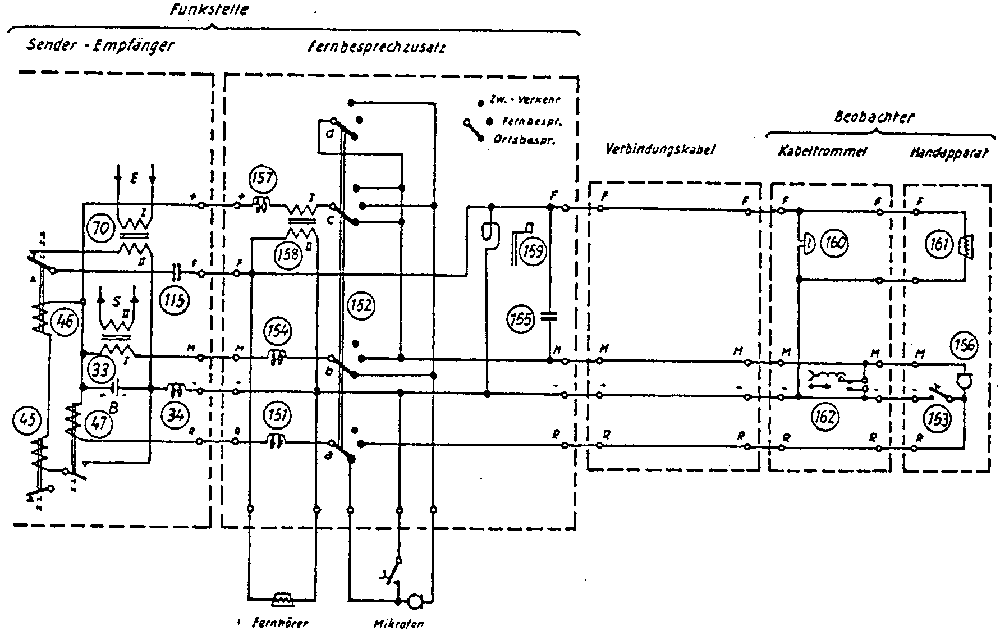

Gesamtschaltbild des Fernbesprechzusatzes (bf)

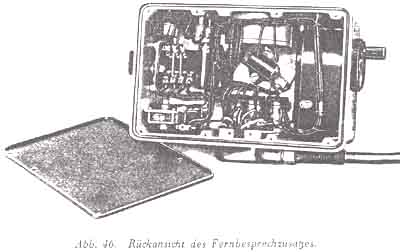

Rückansicht und Mechanischer Aufbau des Fernbesprechzusatz (bf)

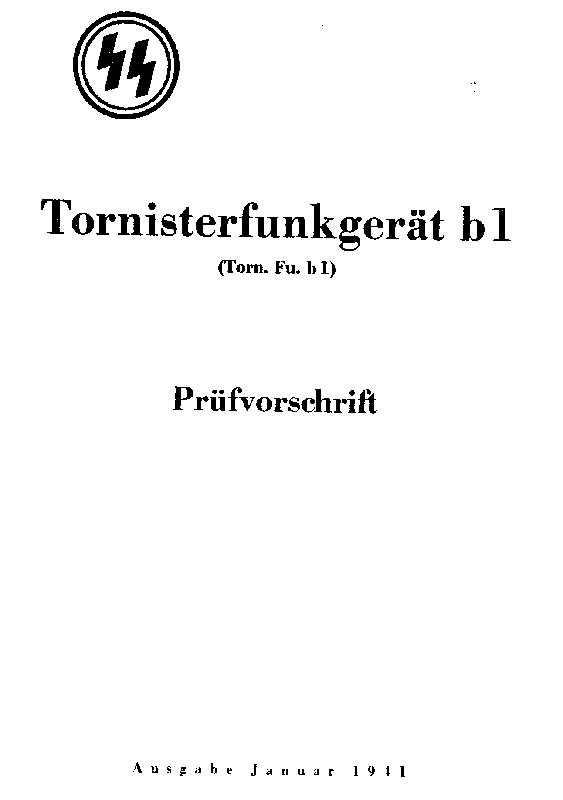

Handbuch des -Fu.b1++
