Note: The two first pictures are 3x larger
than they look on the screen, must be copied to a file before
being printed!

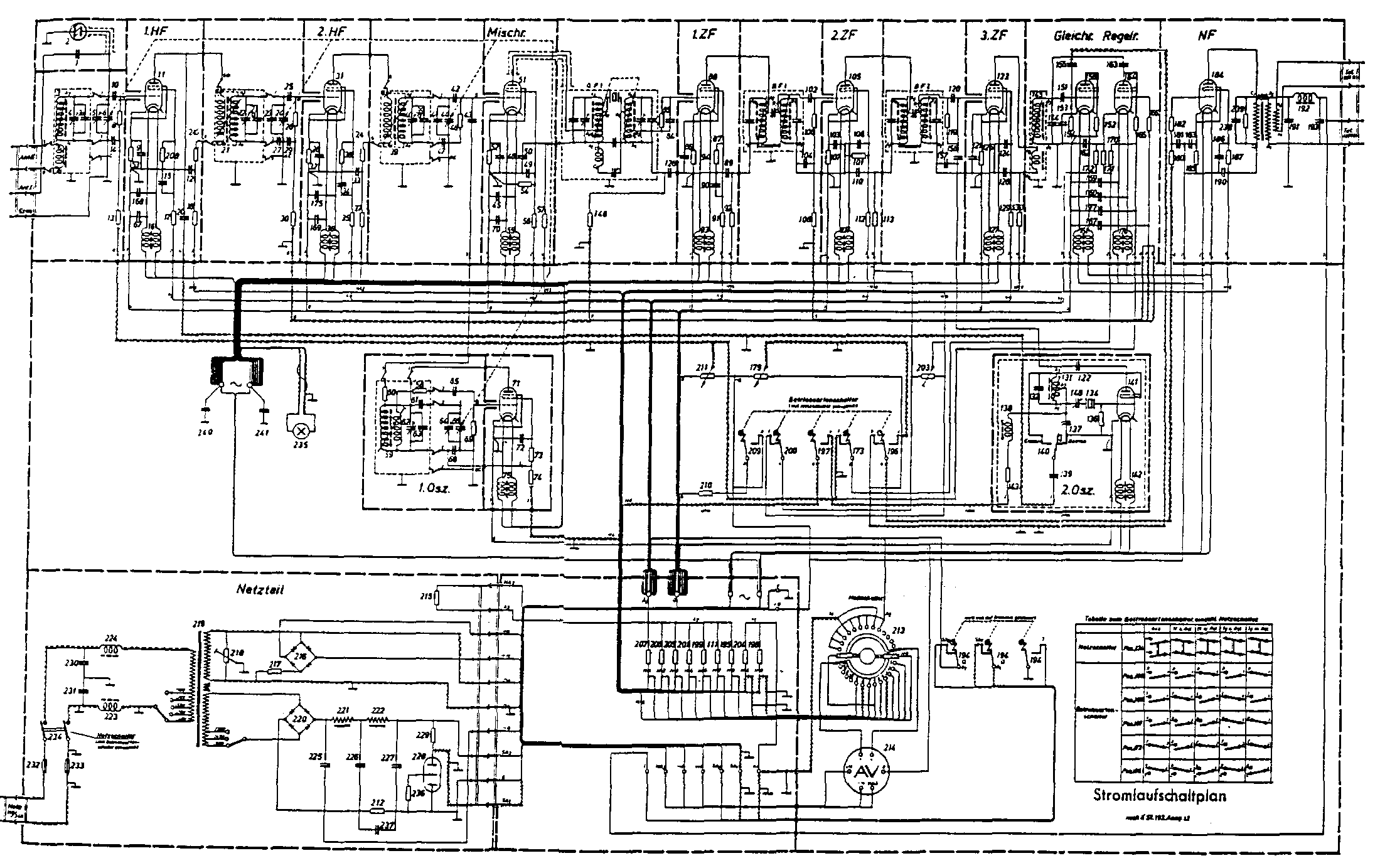

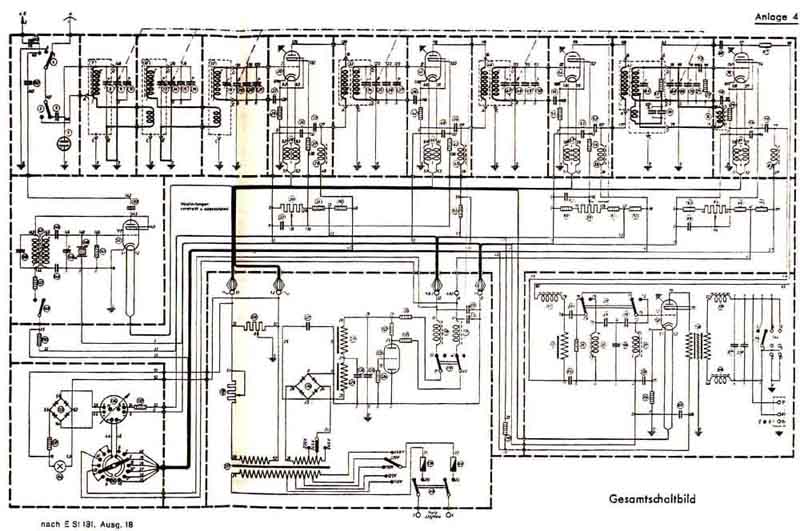

Schaltbild
Ln21021 Schwabenland (Luftwaffe
version, Marine version is
EO 8268)
ZF 1240kHz, 1,5-25MHz in 8 bands, 11x RV12P2000 STV150/20 Te30
BFO: 1241kHz,
HF, HF, Mix, Osz, ZF, ZF, ZF, Diode, AGC-diode, NF, BFO
Note that it used 2x RV12P2000 for 2 diode functions, where
Mw.E.c and Köln E52 would use single valve for 3 functions,
T9K39 uses 1x RV12P2000 as a rectifier diode. Both Ln21021/E=8268
and T9K39 has no audio input amplifier.
Geräte Handbuch: D.(Luft) T.4415 -
available from Fritz Trenkle.
See picture at http://www.laud.no/la6nca/staaland/index.htm

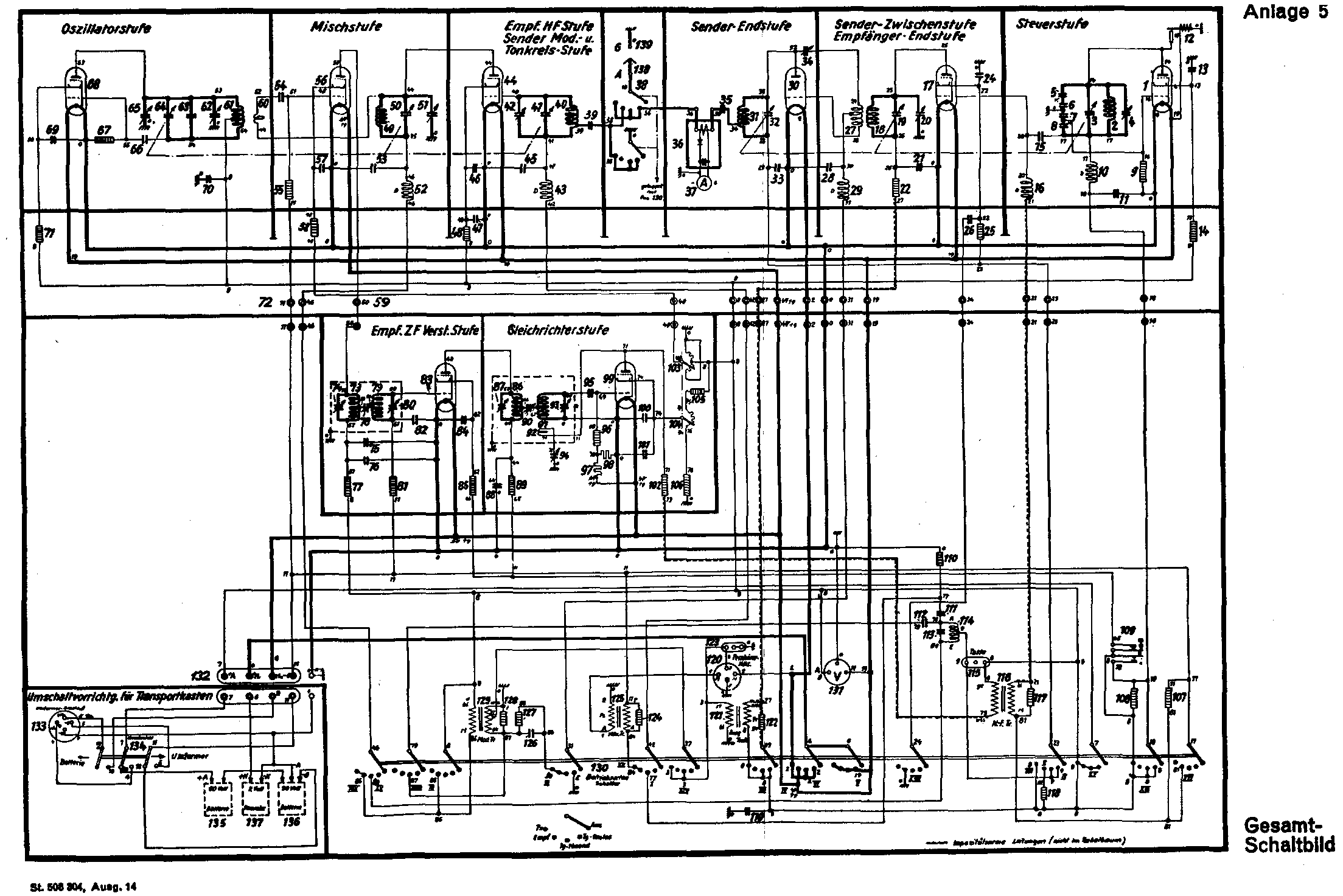

Schaltbild für Lo1UK35
Daten für RL2P3 und RL2T2; sehe Seite E81
Schaltbild für Lo6K39/Lo6L39
