Circuit diagrams/Schaltbilder

LwEa circuit diagram




How the circuit diagram was copied to A4 sheets:

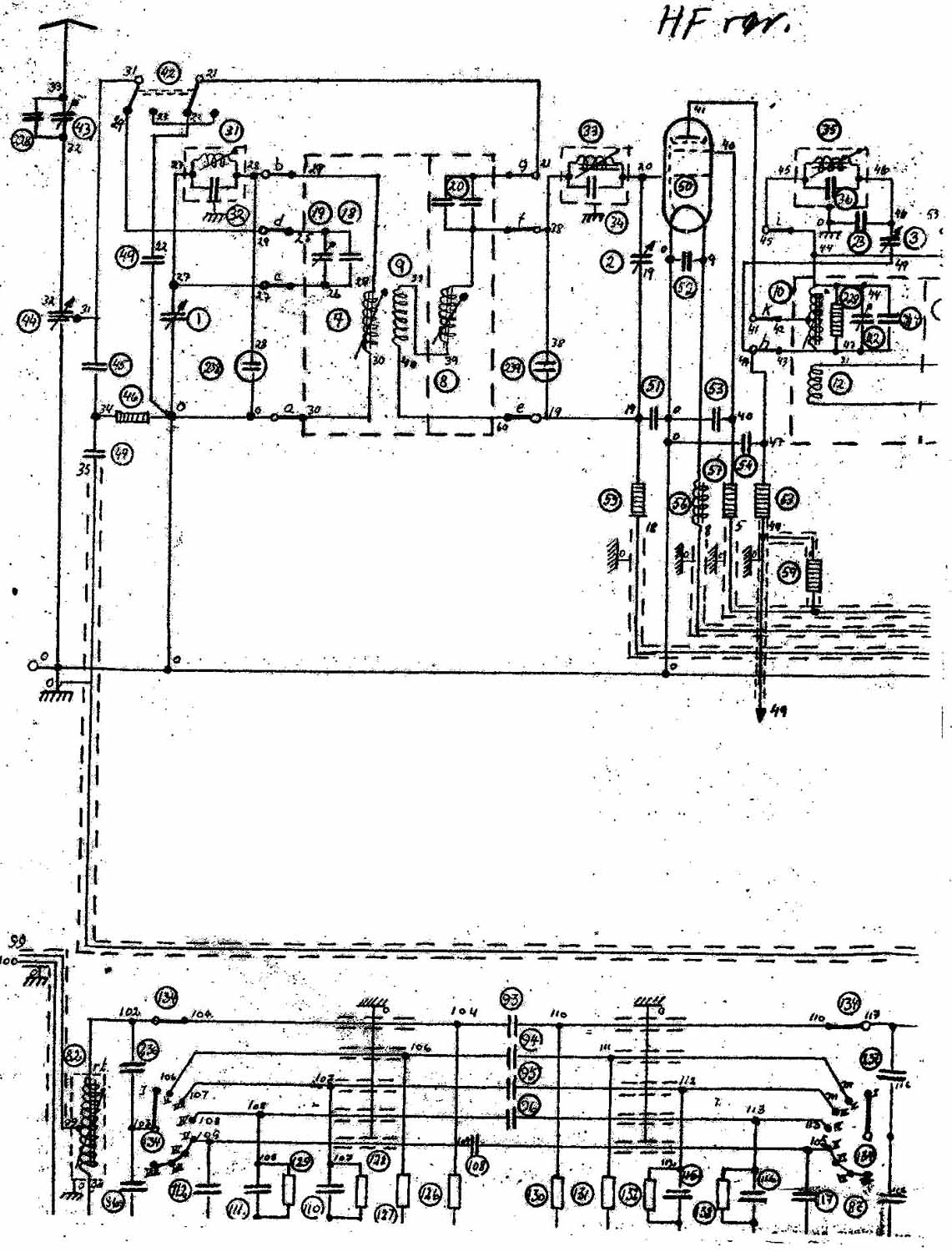

1a RF amplifier

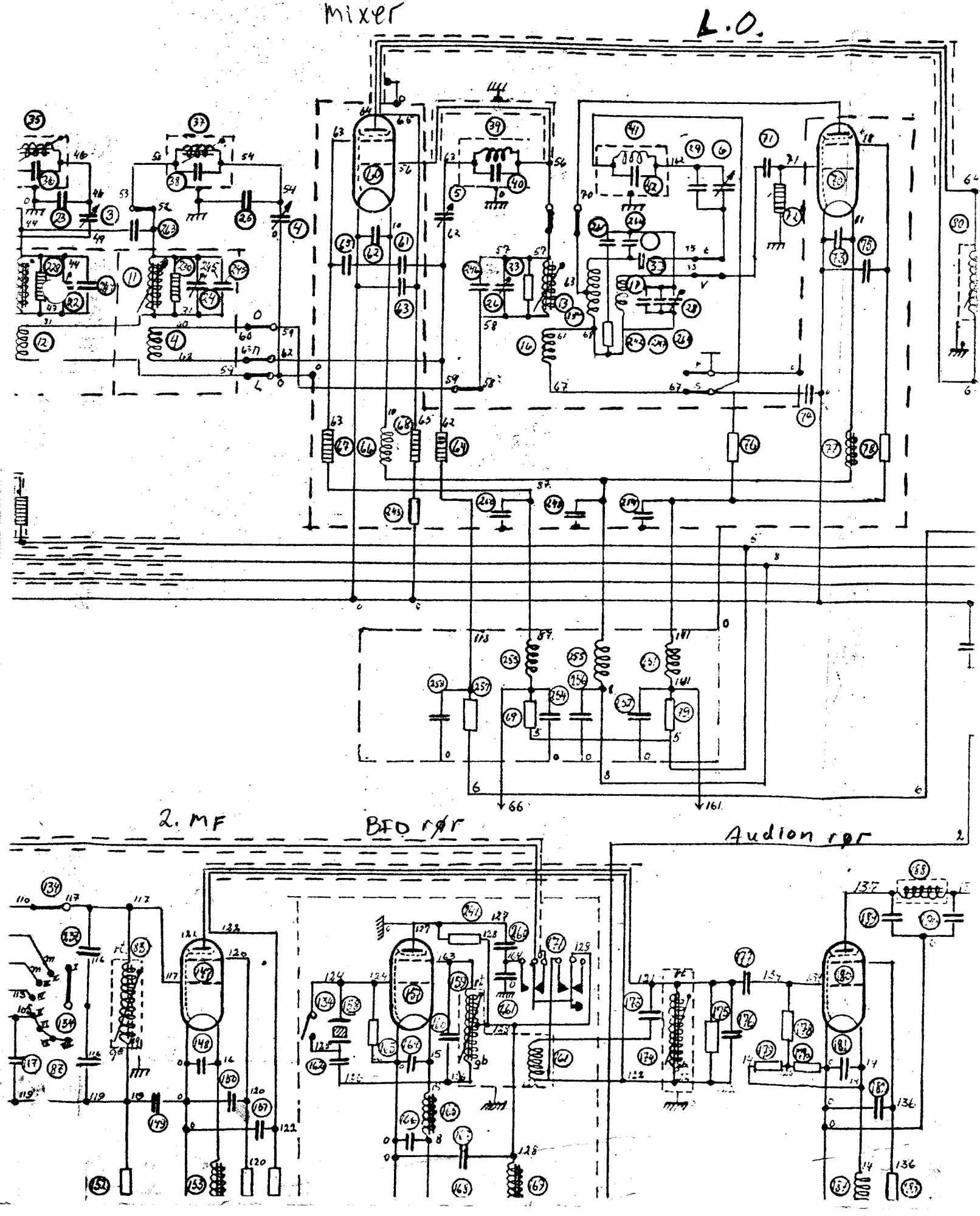

1b Mixer and LO

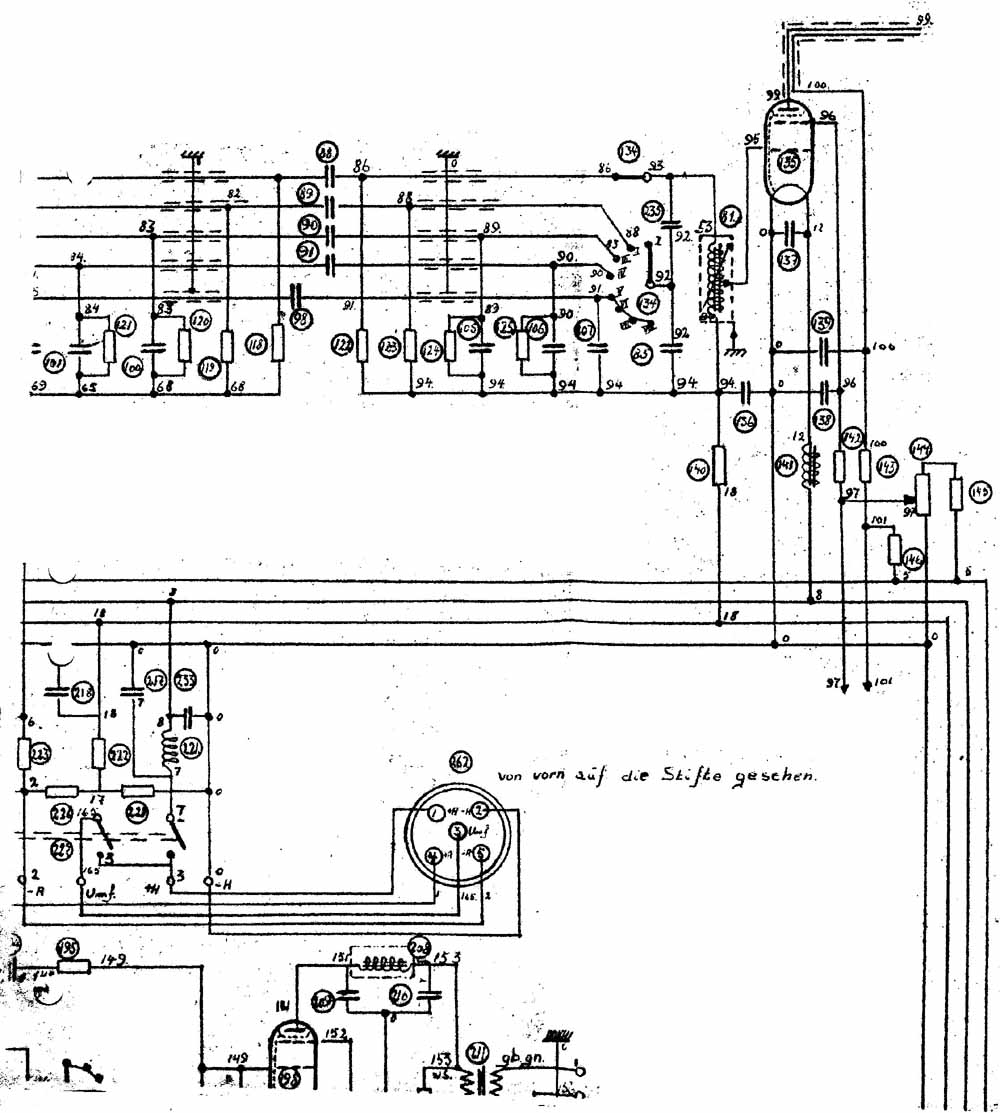

1c: 1st IF (ZF)

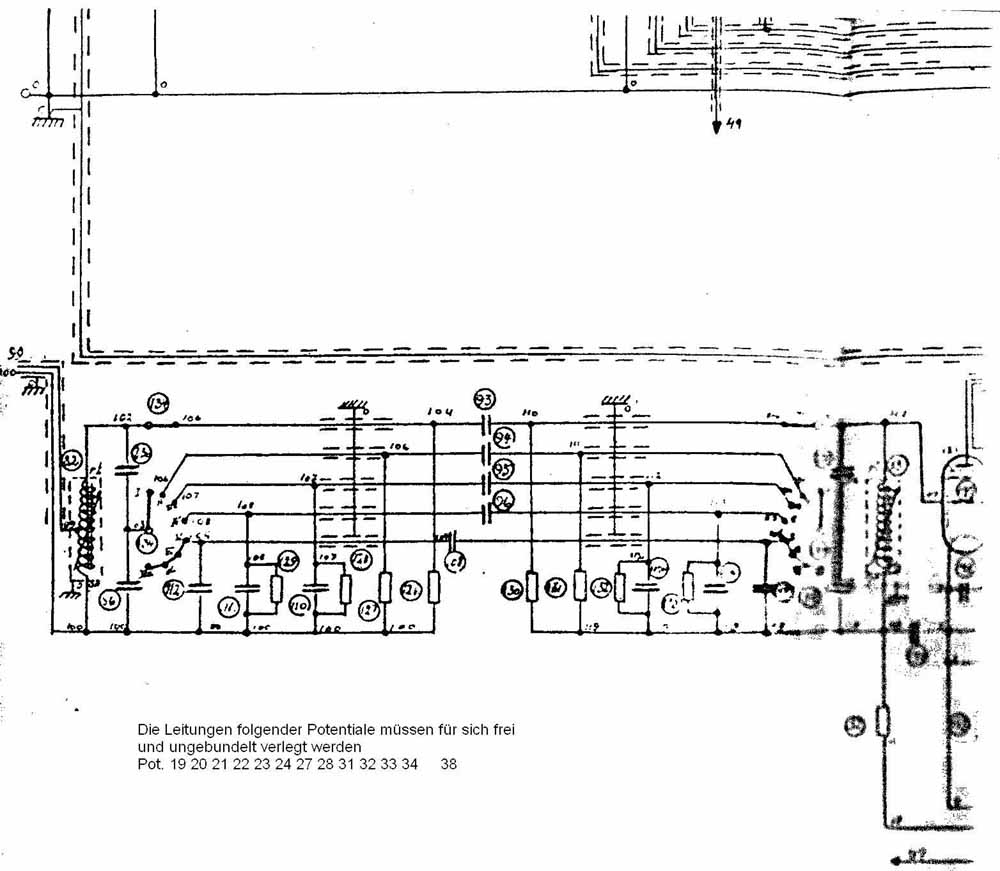

2a: 1st IF bandpassfilter & 2nd IF amplifier (it is partly better on fig 1a)

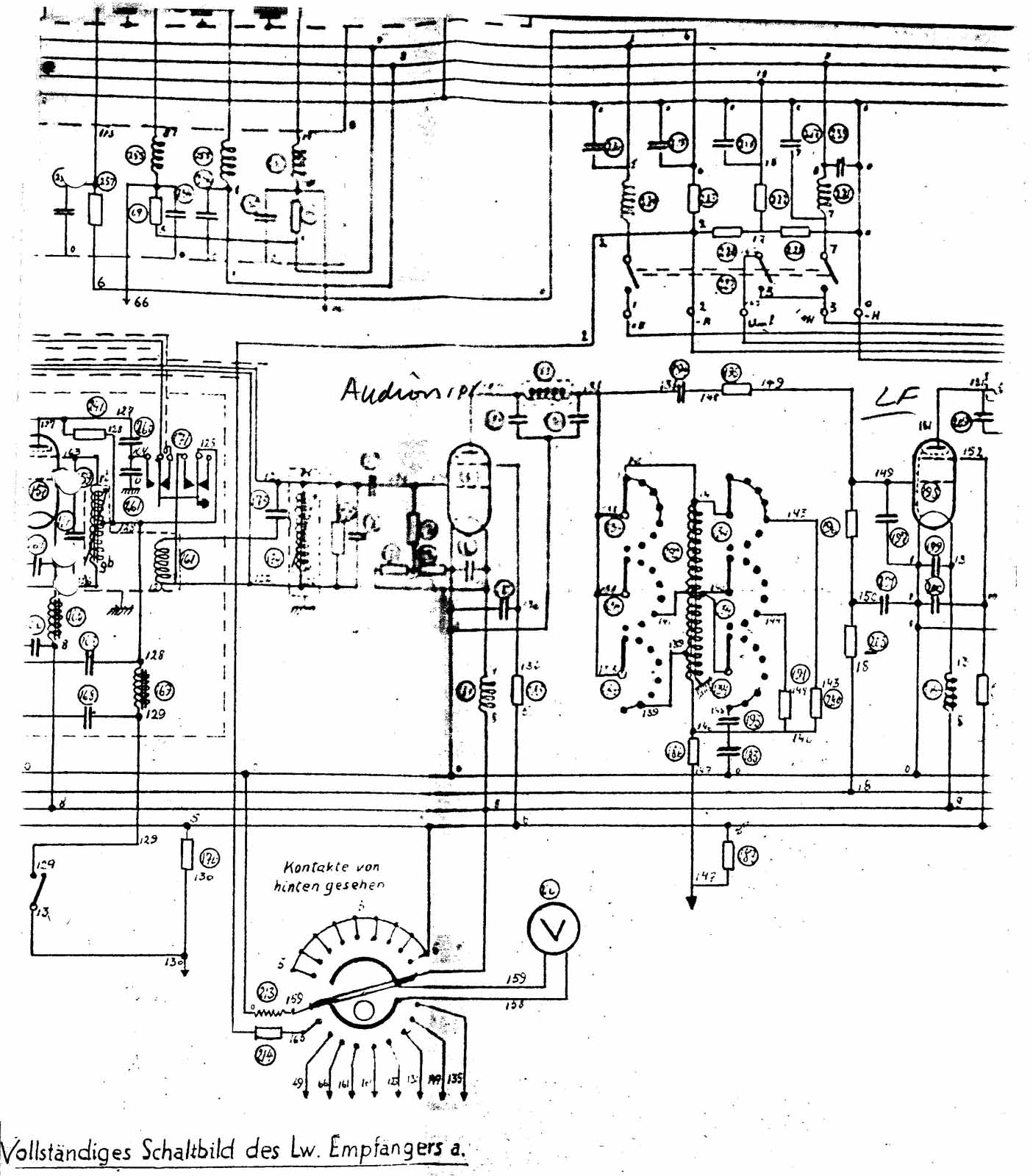

2b: BFO and audion detector and audio, see also fig 1b for better BFO details

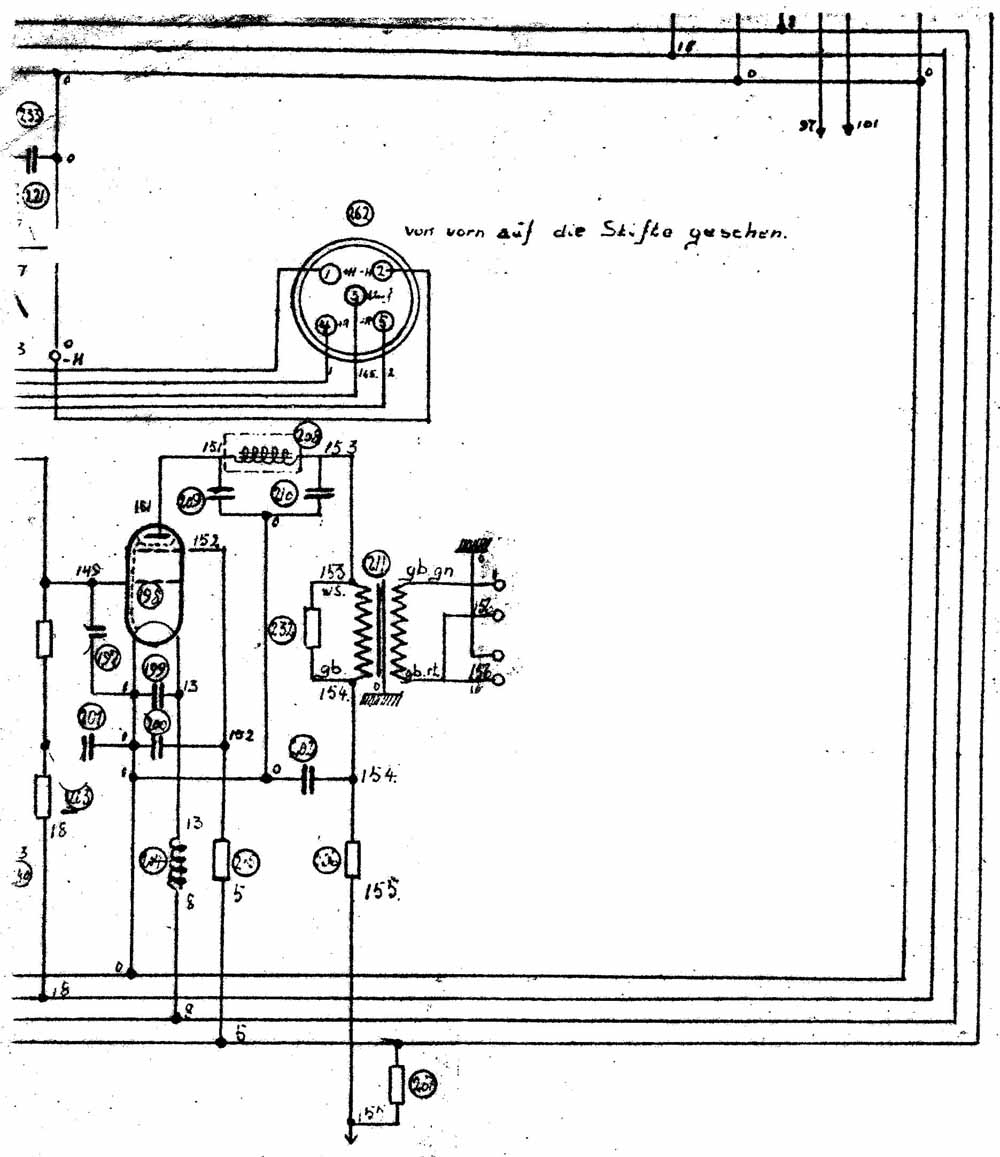

2c: AF output

LwEa circuit diagram as pdf type file, see page 22c
KwEa circuit diagram as pdf type file, see page 22b

Last update: 2005.02.10
