Radione RS20M [20W Marine Transmitter]
XO.= LV1, PA= LS50. Modulator LV1. Range: 3000-14600kHz


Reference: Die deutschen Funknachrichtenanlagen bis 1945, Band 2 [Fritz Trenkle] pp.218

Radione R3, compact communication receiver
Range: 2500-25000kHz

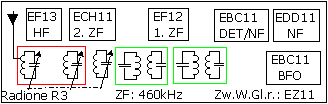

Radione R3. Simplified data.

see circuit diagram for R2 with american loctal tubes on pg. 904 or download here Radione sch

Radione ER2, broadcast receiver
150-415 and 2350-26000MHz. IF=468kHz. Valves: EF13, ECH11, EF12, 2x EBC11, EDD11, EZ11

See also WR 1/P (Philips) and WR 1/T (Telefunken) [Wehrmacht Rundfunkempfänger]
and Die deutschen Funknachrichtenanlagen bis 1945, Band 2 [Fritz Trenkle] pp.174
